Hydrocarbon resin C5

C5 Resin (C5 hydrocarbon resin) is a low-molecular-weight, aliphatic thermoplastic obtained by cationic polymerization of the C5 fraction (isoprene, piperylene, cyclopentadiene, etc.) produced during petroleum cracking.

  • Item NO.:

    Hydrocarbon Resin C5
  • EINECS No.:

    265-116-8
  • CAS No.:

    64742-16-1
  • Color Gardener:

    #3-5
  • Property:

    Excellent compatibility with natural rubber, SIS/SBS, EVA, APAO and other elastomers Markedly boosts tack, peel strength and low-temperature performance Resistant to acids, alkalis and water; good electrical insulation

Hydrocarbon Resin C5(Aliphatic C5 Resin)

C5 Resin (C5 hydrocarbon resin) is a low-molecular-weight, aliphatic thermoplastic obtained by cationic polymerization of the C5 fraction (isoprene, piperylene, cyclopentadiene, etc.) produced during petroleum cracking. It comes as pale-yellow to water-white granules with a softening point of 80–110 °C and is odorless and non-toxic.

Key features:

- Excellent compatibility with natural rubber, SIS/SBS, EVA, APAO and other elastomers

- Markedly boosts tack, peel strength and low-temperature performance

- Resistant to acids, alkalis and water; good electrical insulation

Main applications:

1. Hot-melt adhesives (packaging, hygiene, labels) – provides tack and open time

2. Pressure-sensitive adhesives (tapes, stickers) – adjusts peel force

3. Road-marking paints – improves adhesion of glass beads and wear resistance

4. Tires and rubber goods – acts as tackifier/plasticizer

5. Construction sealants and waterproof membranes – enhances flexibility and adhesion

In short: C5 resin is the “tack catalyst” that makes adhesives, paints and rubber stick faster, stronger and longer.

Hydrocarbon Resin C5 Resin List:

Item Softening Point (°C) Color  Gardner

Acid Value (Mg KOH/g)

Specific Gravity (20/20°C) Melt Viscosity (BRF, @200°C, cps)
Test Method ASTM E 28 ASTM D 1544 ASTM D 974 ASTM D 71 ASTM D 3236
HC 5100 95-105 #3-5 ≤1.0 0.92-0.99 200 max
HC 52100A 95-105 #3-5 ≤1.0 0.92-0.99 200 max
DCPD RESIN 95-120 #0-3 ≤0.05 0.92-0.99 170 max
HC 5090 85-95 #4 ≤1.0 0.92-0.99 200 max
HC 52100 100-105 #3-4 ≤1.0 0.92-0.99 250 max



Application:

Type Recommended
Basic Polymer Application
HC 5100 NR SIS SBS Masking/Packaging Tape
HC 5100, HC 5090 NR SIS SBS Pressure Sensitive Adhesive
HC 5100, HC 5090 EVA HMA
HC 5100 EVA Bookbinding HMA
HC 52100, HC 52100A FILLERS Thermoplastic Road Marking Paint
HC 52100, HC5100 BUTYL RUBBER Sealants
DCPD, HC 5100, HC 52100 NR BR SBR Rubber Compounding



Packaging and Storage Condition:

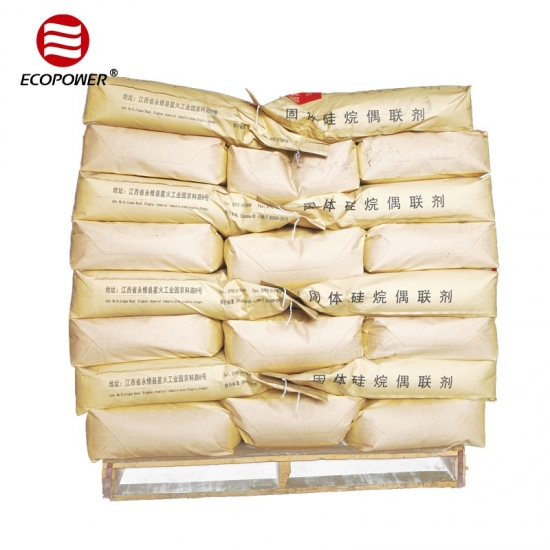

Packing: 25kg in PE bag or Paper bag. With pallet or without pallet.

Storage: Kept in a low temperature, dry and ventilated place, avoid direct sunlight.

Shelf life: One year in ventilating, cool and dry area.
