HC-5090 Low-Temp Tacky C5 Resin

HC-5090: styrene-modified C5 resin, high tack at –20 °C, gel-free with NR/SIS/SBS/EVA, SP 90 °C, low VOC, one resin for both PSA and EVA-HMA.

Item NO.:
HC5090
EINECS No.:
265-116-8
CAS No.:
64742-16-1
Color Gardener:
#3
Property:
HC-5090: styrene-modified C5 petroleum resin, low-temp high tack, broad compatibility; stays flexible down to –20 °C for NR/SBR/SIS/SBS-PSAs and EVA-HMA, low-VOC, halogen-free.

Inquiry now

Product Detail
Packaging and Transportation

HC5090 Styrene Modified Petroleum Resin C5

HC-5090 Low-Temp Tacky C5 Resin | One Grade for NR/SIS/EVA PSA & EVA-HMA

Description:

Low-temperature C5 aliphatic resin, SP 90–96 °C, Tg –25 °C; engineered for NR-PSA and SIS-PSA, retaining high tack and peel down to –20 °C. Low-volatile, halogen-free; compatible with SIS, NR, EVA and plasticizers, ideal for freezer labels and cold-chain PSA tapes.

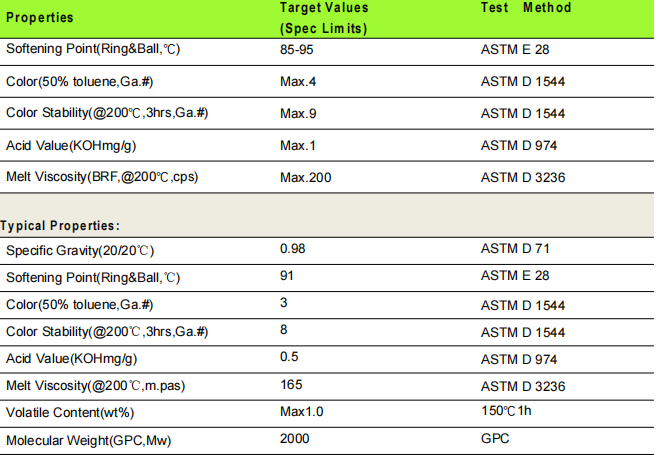

Technical Specification:

Test Item	Specification	Test Method
Softening Point (Ring&Ball,℃)	85-95	ASTM E 28
Color (50% toluene,Ga.#)	Max.4	ASTM D 1544
Color Stability (200℃,3hrs,Ga.#)	Max.9	ASTM D 1544
Acid Value (KOHmg/g)	Max.1	ASTM D 974
Melt Viscosity (BRF, 200℃,cps)	Max.200	ASTM D 3236
Typical Properties
Specific Gravity (20/20℃)	0.98	ASTM D 71
Softening Point (Ring&Ball,℃)	91	ASTM E 28
Color (50% toluene,Ga.#)	3	ASTM D 1544
Color Stability (200℃,3hrs,Ga.#)	8	ASTM D 1544
Acid Value(KOHmg/g)	0.5	ASTM D 974
Melt Viscosity(200℃,m.pas)	165	ASTM D 3236
Volatile Content(wt%)	Max1.0	150℃1h
Molecular Weight(GPC,Mw)	2000	GPC

HC-5090 Key Applications

EVA-based HMA (VA 19–28%)

- Softens polyethylene segments → 15–20% longer open time, deep wetting of PE-coated carton board for stronger sealing

- Low density & high heat resistance: 5% lighter, 8–10% lower coating cost

- Blends with hydrogenated resins for FDA-compliant, low-odor food-packaging adhesives

SBS-based HMA / PSA

- Cuts melt viscosity 30% at 120 °C for high-speed, non-string spraying

- Instant tack and 20% higher peel; ideal for non-wovens, labels, low-temp tapes

- Single resin delivers both tackifying and viscosity reduction—impossible with straight C5 or C9 alone

Related Products

Product Type Recommended	Basic Polymer	Application
HC 5100	NR SIS SBS	Masking/Packaging Tape
HC 5100, HC 5090	NR SIS SBS	Pressure Sensitive Adhesive
HC 5100, HC 5090	EVA	HMA
HC 5100	EVA	Bookbinding HMA
HC 52100, HC 52100A	FILLERS	Thermoplastic Road Marking Paint
HC 52100, HC 5100	BUTYL RUBBER	Sealants
DCPD, HC 5100, HC 52100	NR BR SBR	Rubber Compounding

HC 5090 Styrene Modified Petroleum Resin C5

HC-5090: styrene-modified C5 resin, high tack at –20 °C, gel-free with NR/SIS/SBS/EVA, SP 90 °C, low VOC, one resin for both PSA and EVA-HMA.

Packing: 25kg in PE bag or Paper bag. With pallet or without pallet.

Storage: Kept in a low temperature, dry and ventilated place, avoid direct sunlight.

Shelf life: One year in ventilating, cool and dry area.
